Why to choose TATA Ultra above all?

Tata Ultra white colour truck

The Tata Ultra trucks are the long haul goods carriage trucks that have exceptional power and a huge load carrying capacity. It is one of the oldest companies in the field of automobiles. It produces one of the finest trucks in India. Here are the top 5 models of Tata Ultra:

Also read: BharatBenz 3723R Review Popular Truck 2020

To Get 40% discount on Onelap GPS tracker for trucks

Onelap GPS tracker

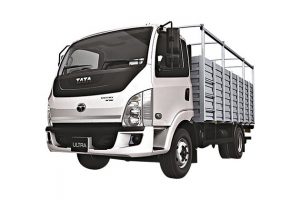

1. Tata Ultra 1012

Tata Ultra 1012 truck model The Tata Ultra 1012 is a heavy-duty goods carriage truck and comes with a very powerful engine. The four-cylinder engine under the hood makes a maximum power of 165.2 bhp at 2,400 rpm along with a peak torque of 400 Nm at 1,300 rpm. A 6-speed manual transmission unit sends the produced power to the wheels. This half-body truck comes with a tiltable day cabin and has tilt and telescopic steering and a driver’s information display. As for the braking, there is a combination of drum and air brakes for the front and rear respectively. The suspension duties are done by Parabolic leaf for the front axle while the rear has Semi-elliptic leaf springs. It has an off-road gradeability of 33%. It is priced between ₹ 13.94 lakh – 14.79 lakh.

PERFORMANCE
Max Power 165.2bhp
Displacement (cc) 0 cc
Fuel Tank (Litres) 120 Ltr
Transmission Manual
Emission Norms BS-IV
Engine 497 TCIC
Gearbox 6-Speed
Clutch Single Plate dry friction type booster assisted, 330 mm
Gradeability (%) 33
Turning Radius (mm) 6450
Max Torque 400Nm
Engine Cylinders 4



DESIGN & BUILD
GVW / GCW (Kgs) 10400
Wheelbase (mm) 3920 mm
Cabin Type Day Cabin
Tiltable Cabin Yes
Front Tyre 235/75R 17.5
Rear Tyre 235/75R 17.5
Overall Width (mm) 2256
Overall Height (mm) 2042
SAFETY
Parking Brakes NA
Brakes Front and Rear – Drum, Air Brakes
Front Suspension Parabolic leaf For Smooth Ride And Comfort At Variable Loads
Power Steering Yes
Rear Suspension Semi elliptical Leaf springs suspension
Front Axle NA
Rear Axle NA
ABS NA



2. Tata Ultra 1518 T 5L

TATA Ultra 1518 T 5L truck model

The Tata Ultra 1518 T 5L offers the highest maximum permissible GVW in the Ultra range at 16190kg and a kerb weight of just 5860kg means it offers the best in the class payload of 10330kg. The suspension duties are taken care by Parabolic Springs at the front and Semi Elliptical Leaf Spring with Parabolic auxiliary springs at the rear. The cabin is a Day cab while a Sleeper cabin is offered as Optional. The Tata Ultra 1518 T 5L is offered in High Side Deck load body while you can choose from as many as 4 different loading spans – 17 ft, 20 ft, 22 ft, and 24 ft, respectively. It is priced between ₹ 21.04-21.72 Lakh.

PERFORMANCE
Max Power 174.4 bhp
Displacement (cc) 5005 cc
Fuel Tank (Litres) 160 Ltr
Transmission Manual
Engine 5 Ltr New Gen Turbotronn
Clutch Single Plate dry Friction type 352 mm
Max Torque 590 Nm
Emission Norms BS-IV
Gearbox 6-Speed
Gradeability (%) 26.5
DESIGN & BUILD
GVW / GCW (Kgs) 16190
Wheelbase (mm) 5300 mm
Body Option Deck Body
Overall Width (mm) 2440
Ground Clearance (mm) 228
Overall Height (mm) 2625
Overall Length (mm) 9400
Front Tyre 275/ 80R22.5
Rear Tyre 275/ 80R22.5
Kerb Weight (Kgs) 4940
Chassis Type Chassis with Cabin
Cabin Type Day Cabin
Tiltable Cabin No
SAFETY
Brakes Air Brakes
ABS No
Parking Brakes Yes
Tubeless Tyres No
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Front Suspension Parabolic Leaf Springs
Rear Suspension Semi-elliptical at Rear with Parabolic Aux springs

3. Tata Ultra 1412

TATA 1412 Model

The Tata Ultra 1412  is already among the most successful Ultra models. In terms of features, the Tata Ultra 1412 offers a hydraulically tiltable day cab that has tilt and telescopic power steering with drooping characteristics for stability at high speed. You also get a 6-way adjustable driver seat while air conditioning is offered as an optional accessory. It is priced between ₹ 17.92-18.62 Lakh.

Also read: How to use GPS for vehicle tracking in 2020? – Learn with Onelap

PERFORMANCE
Max Power 121.6 bhp
Displacement (cc) 3783 cc
Fuel Tank (Litres) 160 Ltr
Transmission Manual
Turning Radius (mm) 9300
Clutch Single Plate dry Friction type 330 mm
Engine Tata 497 DICR BS-IV
Max Torque 400 Nm
Gradeability (%) 23.3
Emission Norms BS-IV
Gearbox 6-Speed
DESIGN & BUILD
GVW / GCW (Kgs) 13850
Wheelbase (mm) 3920 mm
Body Option Deck Body
Tiltable Cabin Yes
Ground Clearance (mm) 225
Overall Width (mm) 2440
Overall Length (mm) 7290
Kerb Weight (Kgs) 3850
Front Tyre 8.25 R20-16 PR
Rear Tyre 8.25 R20-16 PR
Overall Height (mm) 2605
Chassis Type Chassis with Cabin
Cabin Type Day Cabin
SAFETY
Brakes Air Brakes
ABS No
Parking Brakes Yes
Tubeless Tyres No
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Front Suspension Parabolic Leaf Springs
Rear Suspension Semi-elliptical at Rear with Parabolic Aux springs

4. Tata Ultra T7

 The Tata ULTRA T7 is a light to medium goods carriage truck that has impressive features all way around. Firstly, it is built on a deck body with a day cabin and has a gross vehicle weight of 7,300 kilograms. It has a maximum payload capacity of 4,310 kilograms. The Ultra T7 truck is suspended over Parabolic leaf springs at the front axle and Semi-elliptical unit for the rear. The stopping power is generated from the air brakes and the one for parking is also offered. It is priced between ₹ 12.29-13.19 Lakh.

PERFORMANCE
Max Power 82.6 bhp
Displacement (cc) 2956 cc
Fuel Tank (Litres) 60 Litres
Transmission Manual
Emission Norms BS-IV
Gradeability (%) 26
Clutch Single Plate dry friction type 280 mm
Engine 4SPCR BS-IV water-cooled common rail EGR
Max Torque 250 Nm
Gearbox 5-Speed
DESIGN & BUILD
GVW / GCW (Kgs) 7300
Wheelbase (mm) 3550 mm
Chassis Type Chassis with Cabin
Cabin Type Day Cabin
Tiltable Cabin No
Body Option Deck Body
Front Tyre 235/ 75R17.5
Rear Tyre 235/ 75R17.5
Overall Height (mm) 2450
Ground Clearance (mm) 192
Overall Length (mm) 6195
Overall Width (mm) 1905
Kerb Weight (Kgs) 2500
SAFETY
Brakes Air Brakes
ABS No
Parking Brakes Yes
Tubeless Tyres No
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Front Suspension Parabolic Leaf Springs

5. Tata Ultra 814



The Tata ULTRA 812 falls under the category of ‘lightweight truck’. The 3783 ccs 497 TCIC BS-IV engine is responsible for delivering power to this vehicle and is quite capable of putting out a maximum power of 165.2 BHP at 2400 RPM and a maximum torque of 400Nm at 1300 to 1500 RPM. The six-speed manual gearbox coupled to a 330 mm single-plate dry friction type booster assisted clutch handles the transmission duties quite effectively and easily takes the truck to its top speed without putting much strain into the engine. The 160-litre fuel tank is yet another noteworthy feature of this truck since it allows the driver to cruise all day long without hitting the fuel stations much. Its price starts at ₹ 10.83 Lakh.

PERFORMANCE
Max Power 139 bhp
Displacement (cc) 0 cc
Fuel Tank (Litres) 160 Ltr
Transmission Manual
Engine 4 Cylinder inline, water-cooled Turbo-inter-cooled CRDI
Max Torque 360 Nm
Clutch 330 mm, Single Plate Dry Friction type Booster assisted
Engine Cylinders 4
Emission Norms BS-IV
Gearbox 6-Speed
Gradeability (%) 33
 DESIGN & BUILD
GVW / GCW (Kgs) 8750
Wheelbase (mm) 3310 mm
Tiltable Cabin Yes
Ground Clearance (mm) 188
Front Tyre 225/75R 17.5 (14PR)
Rear Tyre 225/75R 17.5 (14PR)
Body Option Customizable
Chassis Type Chassis with Cabin
Cabin Type Day Cabin
SAFETY
Brakes Air Brakes
ABS No
Parking Brakes Yes
Tubeless Tyres No
Seat Belts Yes
Hill Hold No
Fog Lights No
Power Steering Yes
Rear Suspension Semi elliptical Leaf spring
Front Suspension Parabolic Leaf Spring
