This article is a basic overview and review of BharatBenz 3723R Truck. It will cover all about the interior and exterior features of the truck. BharatBenz 3723 R is one of the most popular trucks in its segment. The truck comes with a very powerful DE175BS4 engine which is a 6 cylinder engine. With this, we get the power of approx 232 bhp at 2200 rpm and torque of about 850 NM. The truck comes with tires of 20 inches in size with a 16 ply rating. The size of the chassis is around 28 feet along with 14 wheels plus 1 additional tires. Axle configuration is a 10X2 cabin with chassis.
To Get 40% discount on Onelap GPS tracker for trucks
Also read: How GPS for a truck can be beneficial?

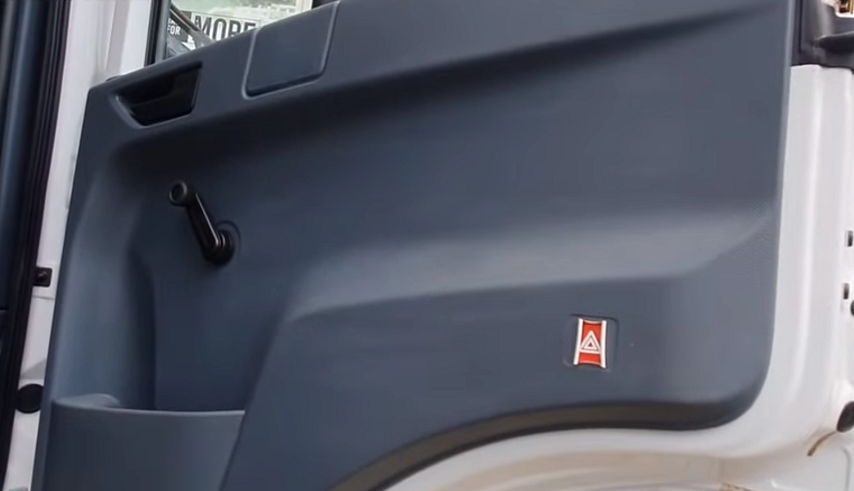

Interior BharatBenz 3723R analysis

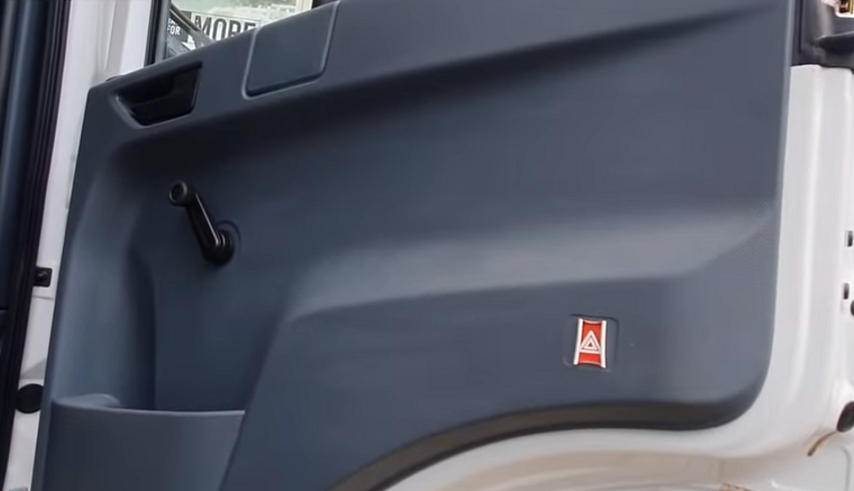

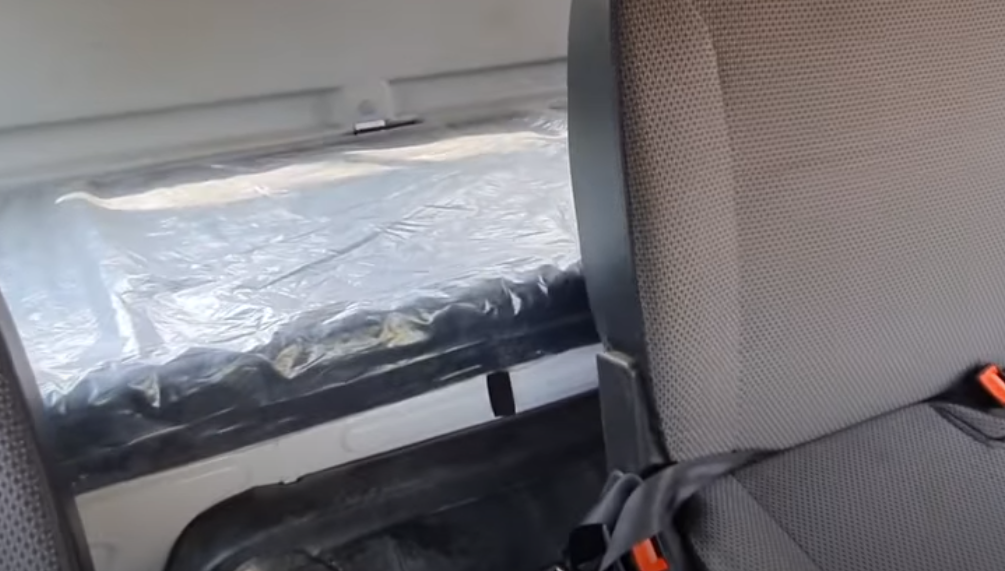

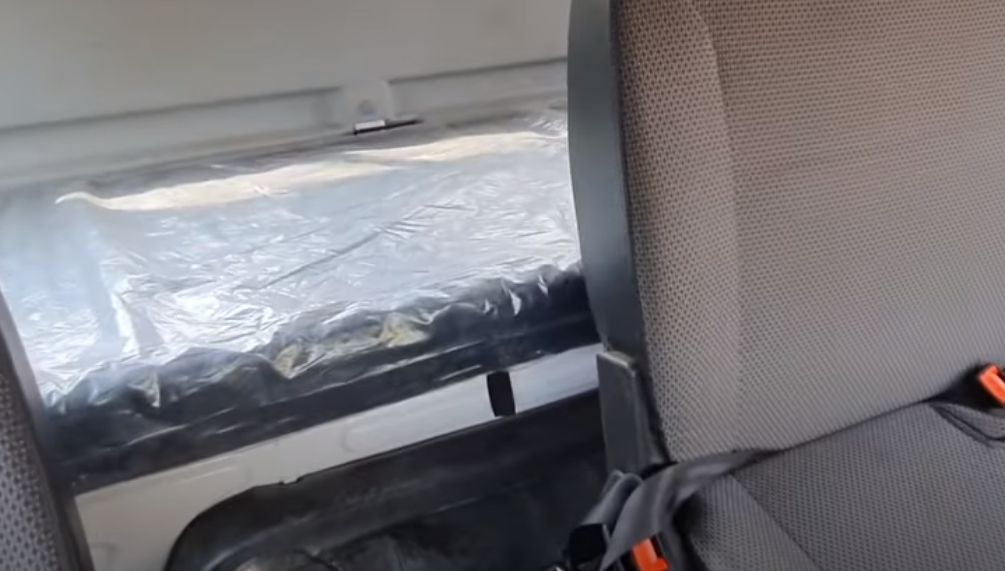

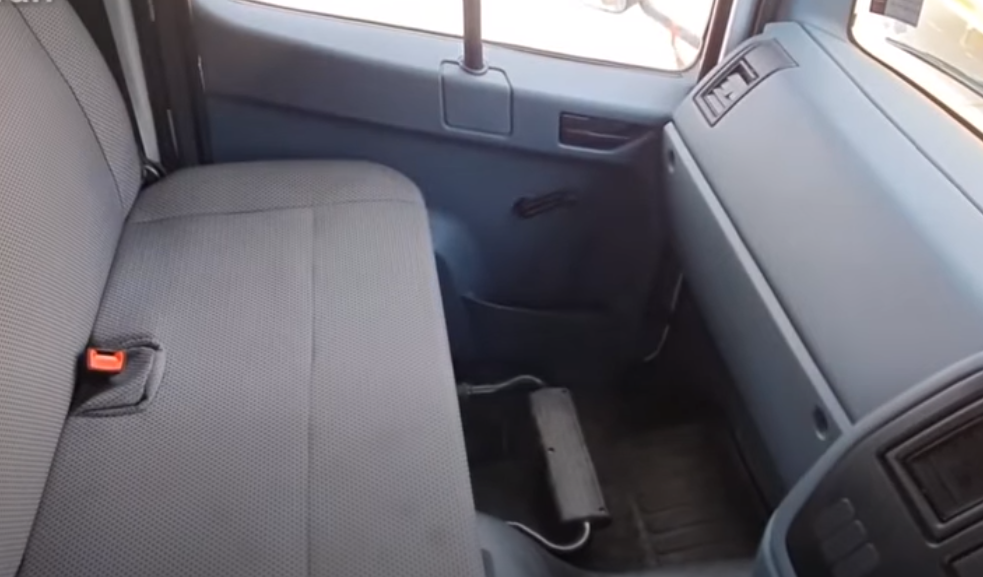

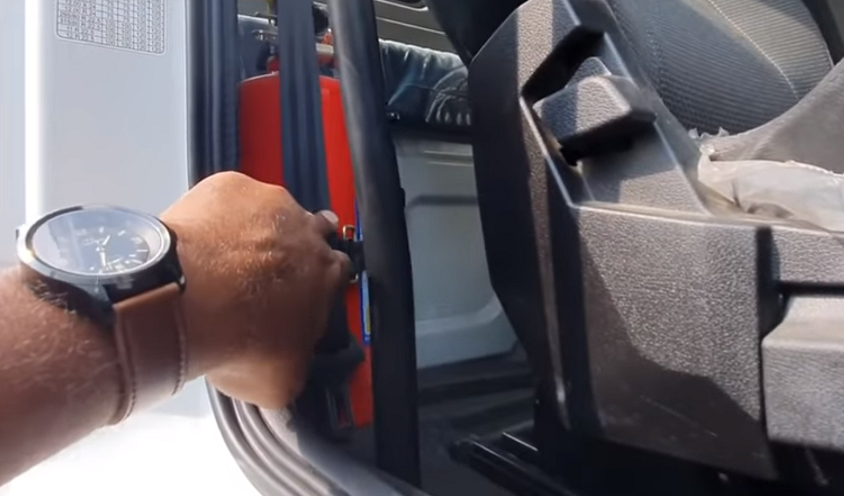

If we look into load body option then a fixed side deck is available in this truck. In this truck, we get a sleeper cabin fully suspended which makes the journey of the driver quite comfortable. Seats can be adjusted in a 6-way direction so the driver can adjust the seat as per his height and comfort. Safety is also taken care of in this vehicle as a company fitted fire extinguisher is also given in this vehicle next to the driver seat. The Clutch in this truck is of 395 mm diameter with the clutch booster feature which makes it special.
Warranty: 6 years or 6 lakhs km
Servicing: 1 lakhs km (Hence a low maintenance vehicle)
Other features BharatBenz 3723R review and analysis

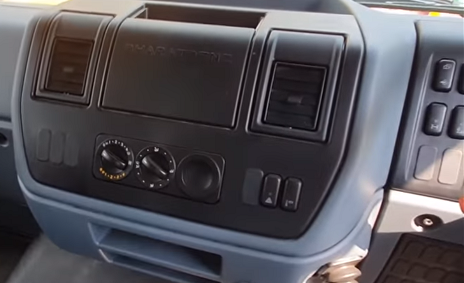

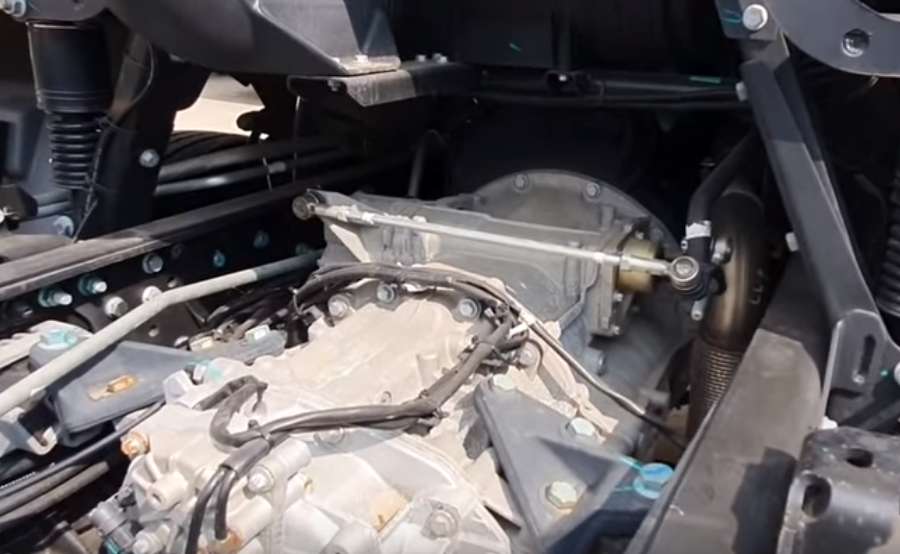

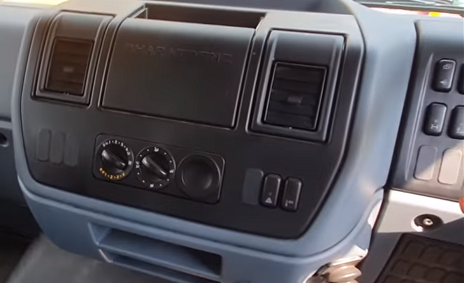

Air conditioning is an optional feature but a standard blower is given by the company and for additional accessories, idle pockets are also available in this truck. Mobile charging facility is also available in this truck. The truck has also got a decent leg space. It has a 9-speed manual transmission with 9 front and 1 reverse transmission. G131 synchronous gearbox is available in this which makes 29.6% gradeability (ability to climb up the hill)

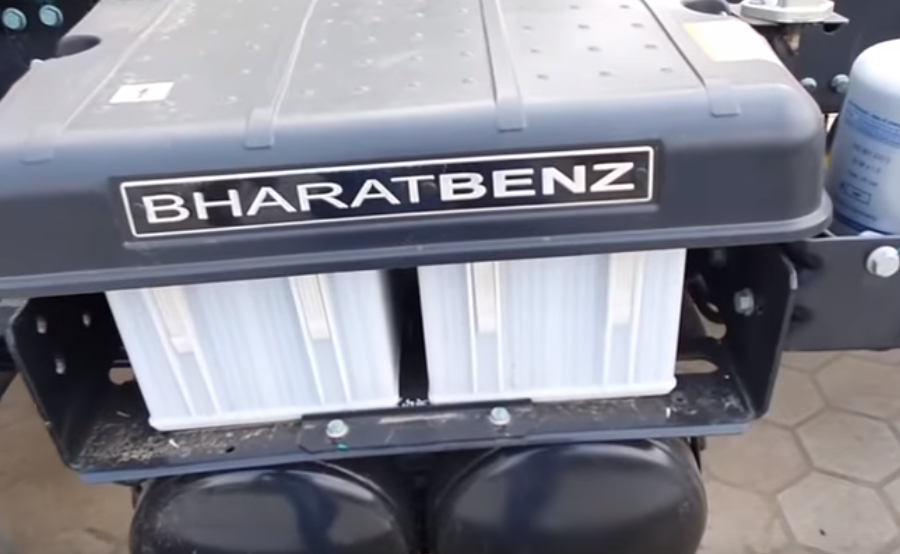

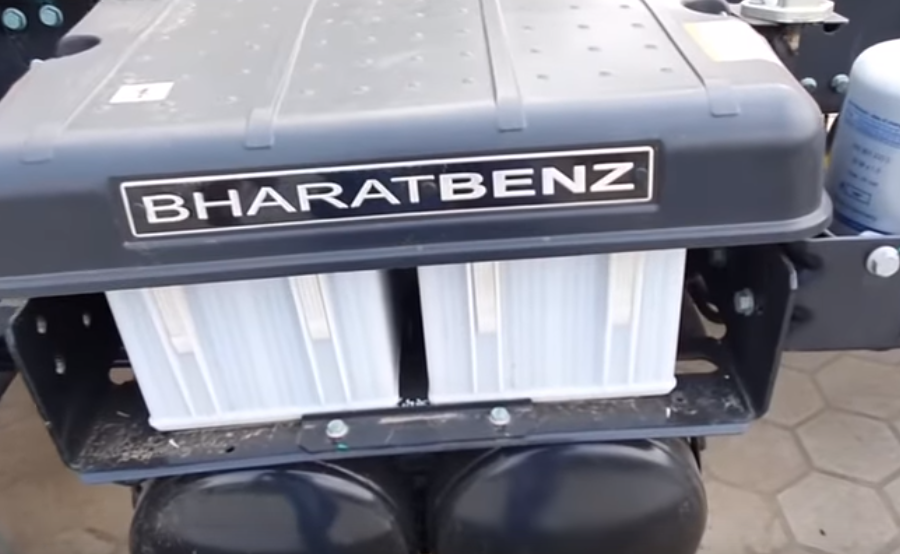

Battery: 2 battery of 12V is given which makes it 24V vehicle
A Front anti-roll bar is available as per the standards but these features can be made available in the rear as well in this truck
Also read: What is an average price of an GPS tracker and why it is a must buy gadget?
Wheelbase and trailer BharatBenz 3723R review and analysis
It has a quite long wheelbase of 6575 mm which is quite long in its segment and it needs 24 meters of space to turn. It has a quite decent ground clearance of 260mm. Truck dimensions are 11044 mm in length and 2490 mm width. Front Suspension is semi-elliptical spring suspension. Its cabin is also fully suspended. The rear suspension balancer semi-elliptical spring suspension.

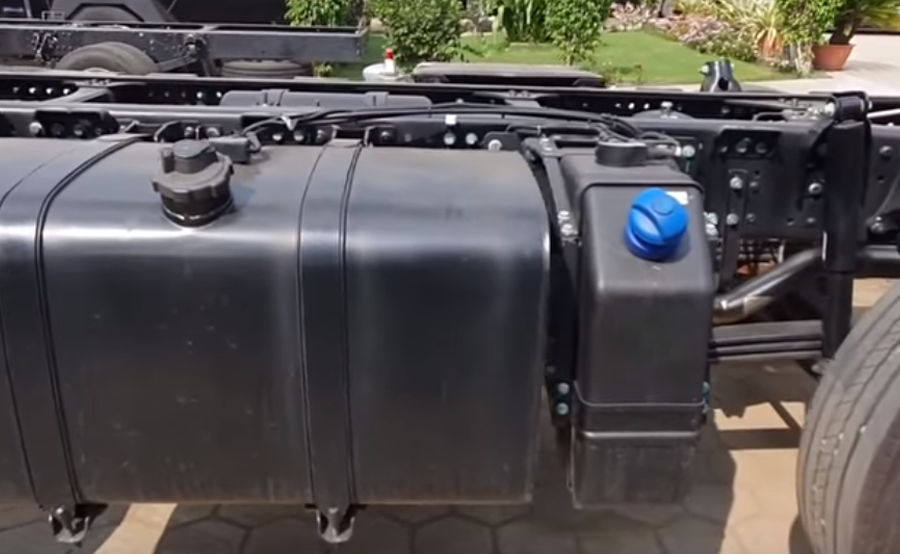

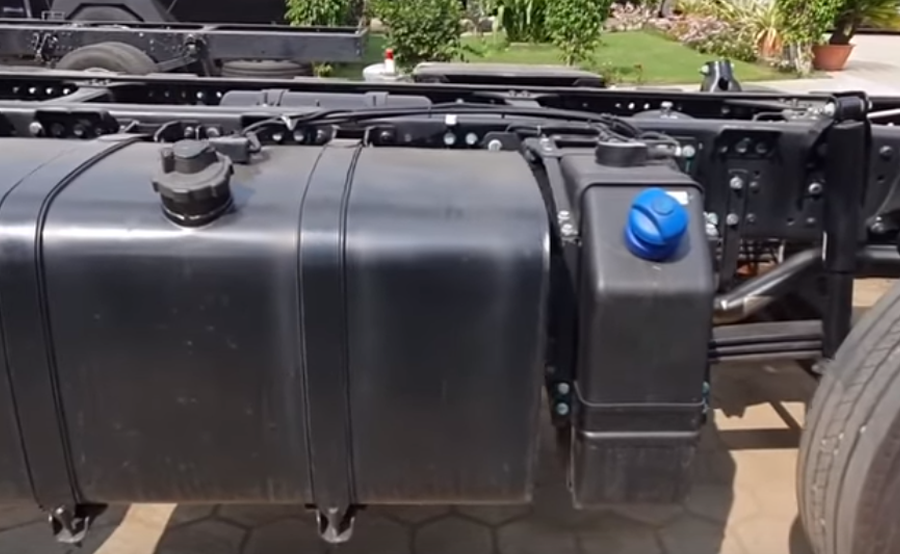

In front pusher axle pneumatic lift option is also available. It has a huge fuel tank of 380L and 60L of AdBlue tank so you don’t need to refill it very frequently.

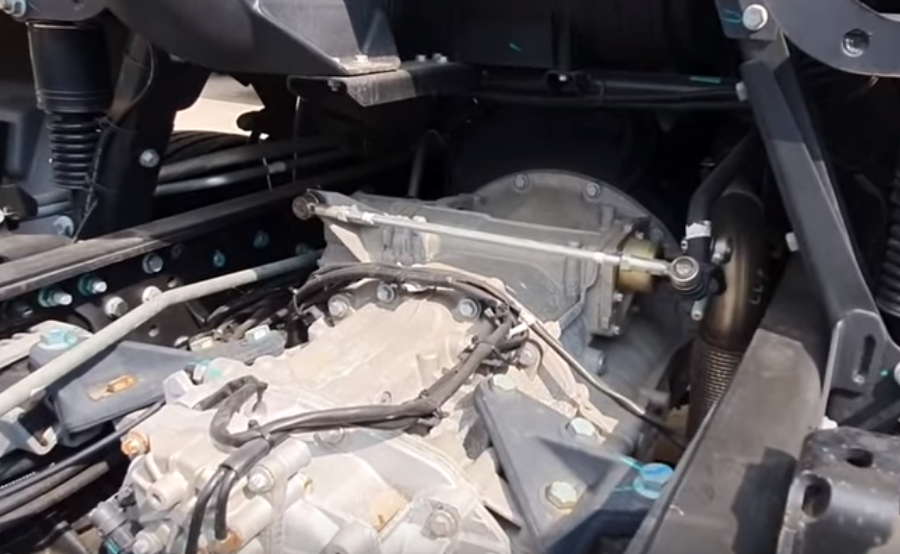

Its cabin can be tilted with the help of hydraulic lifts in case you want to do some inspection in the cabin.
Pricing: 32 lakhs 70 thousand approx (ex-showroom price)
Brakes: Air brake with ABS facility exhaust brake
Parking brake: Hand controlled value acting on rear axle.
Tires options: Options for tubeless tires but cruise control option is available.
Best feature: Alarm on diesel theft
Max speed: 80 Km/hr.
Emission norms: Currently is BS4
Payload capacity: 37 ton
Key specifications
| Power | 231.2 bhp |
| GVW | 37000 kg |
| Wheelbase | 6575 mm |
| Engine | 6373 cc |
| Fuel Tank | 380 Ltr |
| Transmission | Manual |
Performance
| Max Power | 231.2 bhp |
| Displacement (cc) | 6373 cc |
| Fuel Tank (Litres) | 380 Ltr |
| Transmission | Manual |
| Emission Norms | BS-IV |
| Max Speed (km/h) | 80 |
| Engine Cylinders | 6 |
| Gearbox | 9-Speed |
| Turning Radius (mm) | 12000 |
| Engine | DE175BS4 |
| Clutch | Single dry plate, Hydraulic control with clutch booster, 395 mm |
| Max Torque | 850 Nm |
| Gradeability (%) | 29.6 |
Design & Build
| GVW / GCW (Kgs) | 37000 |
| Wheelbase (mm) | 6575 mm |
| Cabin Type | Sleeper Cabin |
| Ground Clearance (mm) | 260 |
| Overall Width (mm) | 2490 |
| Overall Height (mm) | 2975 |
| Axle Configuration | 10×2 |
| Overall Length (mm) | 11044 |
| Front Tyre | 295/80R 22.5 16PR |
| Rear Tyre | 295/80R 22.5 16PR |
| Body Option | Customizable |
| Chassis Type | Chassis with Cabin |
| Tiltable Cabin | Yes |
Comfort
| Cruise Control | No |
| Navigation System | No |
| Arm-rest | No |
| Seat Type | Standard |

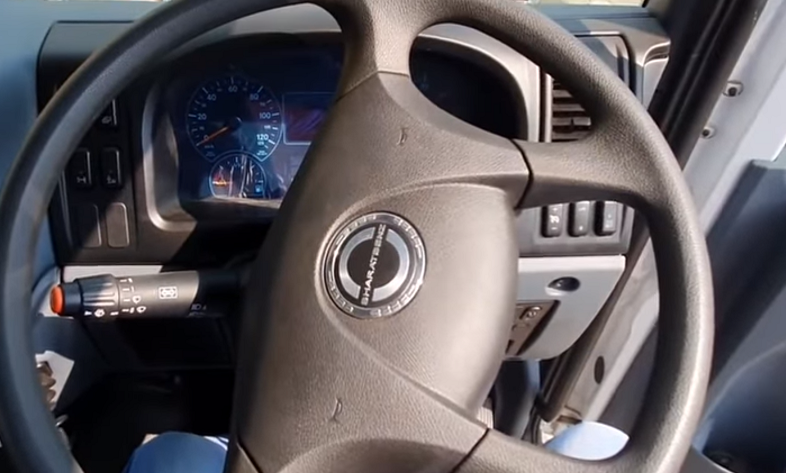

| Driver Information Display | Yes |
| Adjustable Driver Seat | Yes |

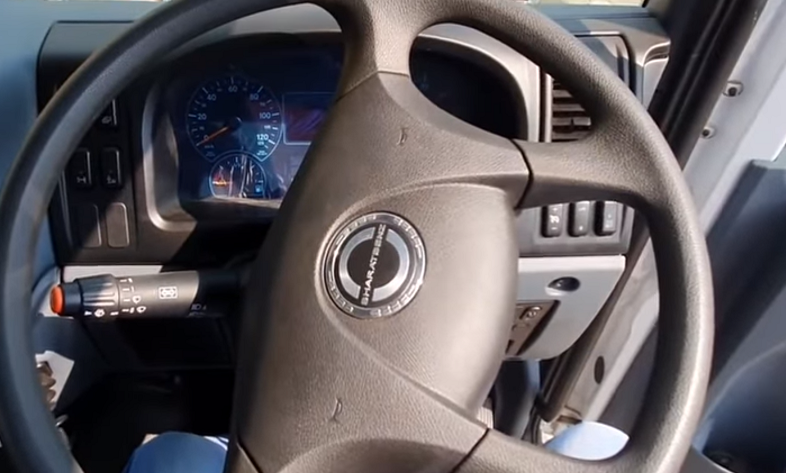

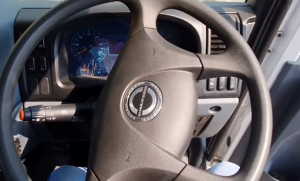

| Tiltable Steering | Yes |
| A/C | Optional |
| Steering | Hydraulic Power assisted |
Safety
| ABS | Yes |
| Front Suspension | Parabolic type leaf spring with 2 hydraulic shock absorbers |
| Rear Suspension | Balancer type semi elliptical leaf spring |
| Brakes | Pneumatic Brakes |
| Front Axle | IF6.6 Reverse elliot & IT10, Pusher |
| Rear Axle | IR440 Fully floating, Hypoid gears |
| Parking Brakes | Yes |
| Tubeless Tyres | No |
| Seat Belts | Yes |
| Hill Hold | No |
| Fog Lights | No |
| Power Steering | Yes |
Others
| Floor Type | NA |
| Length {mm (ft.)} | 8420(28 ft) |
| Body Material | NA |
| Canopy Length | NA |
| Water Tank Capacity (KL) | NA |
| Water Tank Type | NA |
| No. Of Valves | NA |
| Pump Type | NA |
| Bulker Type | NA |
| Bulker Air Inlet Pipe | NA |
| Bulker Equipments | NA |
| Bulker Electricals | NA |
| Bulker Pressure | No |
| Floor Material | NA |
| Chassis | Yes |
| Side Board Material | NA |
| Width {mm (ft.)} | NA |
| Rear Board Material | NA |
| Height {mm (ft.)} | NA |
| Temperature Range | NA |
| Electricals | 24 V |
| Size (Cu. M) | NA |
| No. Of Axles | NA |
| External/Interior Surface | NA |
| Axle Types | NA |
| Bulker Discharge Pipe | NA |
| Landing Gear | NA |
| Refrigerating Unit | NA |
| Body Brakes | . |
| Battery(Volts) | 2 x 12 V, 120 Ah |
